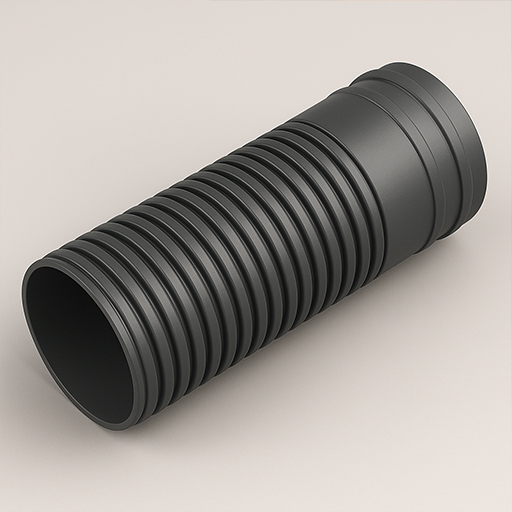

Corrugated PVC Pipe

How to Store and Transport Corrugated and Smooth PVC Pipes:

• Pipes must be stored in completely flat warehouses, away from direct sunlight and any flammable materials.

• Pipes should be stacked in the warehouse in such a way that they do not bend and can be inspected and monitored from both ends.

• The warehouse must have an appropriate temperature. (Excessive cold or heat can negatively affect the quality of the pipes).

• The maximum stacking height in storage is 2 meters.

• Placing or transporting heavy objects on the pipes is strictly prohibited.

• During loading or unloading, technical guidelines must be observed (avoid dropping, throwing, etc.).

Technical Specifications:

• Material: PVC

• Contains at least 82% resin

• Specific gravity: 1.4 ± 0.02 gr/cm³ according to ASTM-D 795

• Impact resistance test according to ASTM-D 756, Method A

• Much higher flexibility compared to high-pressure pipes

• Pressure resistance up to 8.5 PSI

• The only high-pressure corrugated pipe in Iran certified with ISO 9001-2000 from TUV NORD Germany

• Manufactured in weights of 6 kg and 6.8 kg, in 6-meter lengths

• Color: Grey (in accordance with Telecommunication of Iran specifications) RAL 7046
